Description

Attributes

• Count Of Batteries Charged: 2
• Output Voltage: 12 Volt/ 24 Volt
• Input Voltage: 120 Volt
• Ampere Rating: 15 Amp
• Number Of Stages: 3 Stage
• Universality: Fully Universal
• Length (IN): 1-1/4 Inch
• Width (IN): 4-1/2 Inch
• Height (IN): 5-1/2 Inch

Product

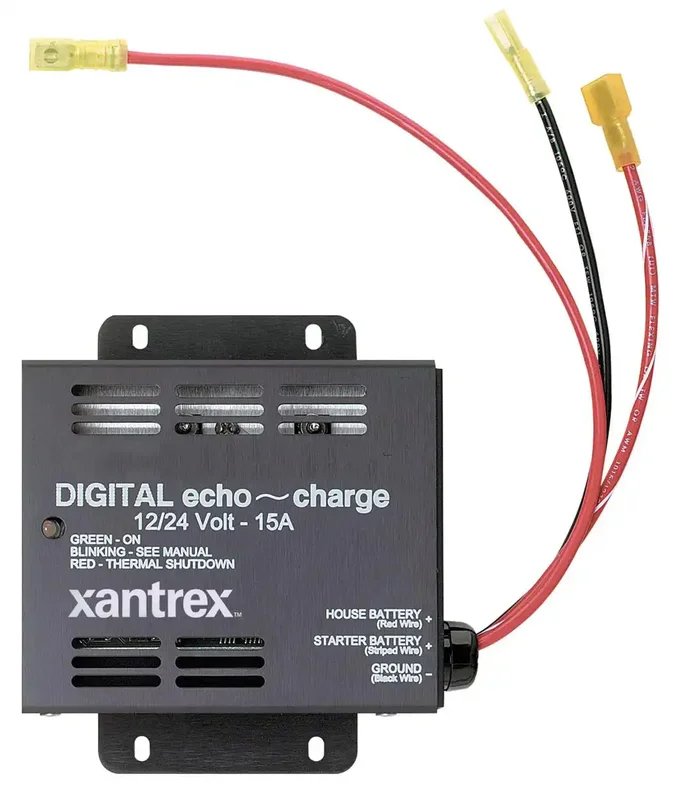

Xantrex’ digital echo-charge is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echo-charge detects when the battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echo-charge is limited to 15 Ampere.

Features & Benefits

• 15 Ampere Maximum Charge Current
• Automatically Adjusts For 12 Volt Or 24 Volt Battery Banks (Both Battery Banks Must Be The Same DC Voltage And Battery Type)
• Automatically Switches On/Off Without Affecting The In-House Battery Bank Or Over-Charging
• Utilizes Excess Current From The Primary Charging Source
• Built-In Thermal And Over-Current Circuits
• Reverse Polarity Protection
• Easy Three Wire Installation
• Limited 1 Year Warranty
