Description
1967-68 Pontiac Firebird Pitman Arm V8 w/Power Steering

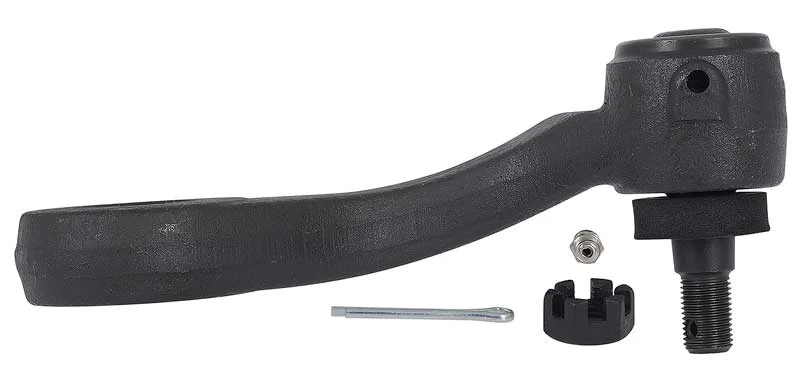

Quality reproduction of the original pitman arm designed for 1967-68 Firebird models with V8 engine and power steering. Manufactured to exact factory specifications. Each assembly features heat treated components and forging, and precision machining tolerances. Replacing this component improves steering response; reduces wander and vibration. Assembly includes: (1) Pitman Arm, (1) Dust Seal, (1) Castle Nut, (1) Cotter Pin, (1) Grease Fitting.
Product Specifications:
Stud Dia. Small End Of Taper: 0.584
Sector Shaft Dia.: 1.250
Sector Shaft Spline Large Inner Diameter: 1.135
Length Center to Center: 5.5
Key Way (Male or Female): Male
Off Set: Up
# of Splines: 32
Hardware Included: Yes
Arm Type: Bent
Arm Fixture: Stud
Arm Fixture Stud Thread/Hole Inside Diameter: 1/2-20
Greasable: Yes
Applications:
Pontiac Firebird (1967-68)
